Ihe nzacha Harmonic na-arụ ọrụ(AHF-50-0.4-4L-W)

Nkọwa dị mkpirikpi:

Enyere nkwụghachi ụgwọ ugbu a: 50A
Netwọk: usoro waya anọ nke atọ
voltaji ọnụ:AC400V(-40%~+15%)
Nwụnye: Edokwasịrị mgbidi

Ihe nzacha harmonic na-arụ ọrụ na-ebelata ma ọ bụ kpochapụ ndakpọ ndakọrịta na sistemụ eletriki, na-ahụ na ịdị mma ike na-emezu ụkpụrụ ụlọ ọrụ ma na-eme ka arụmọrụ na ntụkwasị obi zuru oke nke sistemụ ike.
Kwesịrị ekwesị maka ụlọ ọrụ mmepụta ihe, ụlọ azụmahịa, usoro ume ọhụrụ, ụlọ ọrụ ahụike, ebe data
Ejiri mgbidi maka nrụnye dị mfe na nke na-agbanwe agbanwe.

- Mbelata harmonic nke 2 ruo 50

- Nkwụghachi ụgwọ oge

- Modular imewe

- Chebe akụrụngwa ka ị ghara ikpo ọkụ ma ọ bụ ọdịda

- Melite arụmọrụ akụrụngwa


Nkọwa ngwaahịa

FAQ

Mkpado ngwaahịa

Nkeji 12@2x

Agụụ

Harmonic isi iyi: thyristor, inverter

Harmonic akụrụngwa: onye na-agba ọsọ ọsọ, ụdị nfuli niile

Akara 9@2x

Ụlọ ọrụ data center

Harmonic isi iyi: UPS, rectifier

Harmonic akụrụngwa: UPS, ntụ oyi, mbuli elu, LED ọkụ

Akara 3@2x

Imepụta ụgbọala

Harmonic isi iyi: inverter, rectifier

Harmonic akụrụngwa: igwe ịgbado ọkụ, nnyefe usoro

Nkeji 11@2x

Nrụpụta ike mkpofu

Harmonic isi iyi: rectifier, inverter

Harmonic akụrụngwa: ụdị nfuli niile

Akara 8@2x

Ọgwụgwọ nsị

Harmonic isi iyi: inverter, rectifier

Harmonic akụrụngwa: fan, mgbapụta

Akara 5@2x

Okpokoro chaja ụgbọ ala

Harmonic isi iyi: rectifier

Harmonic ngwaọrụ: chaja

Akara 4@2x

Semiconductor

Harmonic isi iyi: thyristor, otu ọkụ kristal

Akụrụngwa harmonic: quartz crucible, thyristor

Akara 7@2x

Ụlọ ọgwụ

Harmonic isi iyi: rectifier, UPS, inverter

Akụrụngwa Harmonic: akụrụngwa ziri ezi, ọkụ ọkụ, igwe mbuli elu, UPS

Akara 1@2x

Ụlọ ọrụ akwụkwọ

Harmonic isi iyi: halogen oriọna, inverter

Harmonic akụrụngwa: pulper, ịkpụ akwụkwọ, overpress, arc oriọna

Nkeji 10@2x

Ígwè na ígwè na-agbaze

Harmonic isi iyi: rectifier, inverter, thyristor

Akụrụngwa Harmonic: Igwe ọkụ gbawara, ọkụ etiti ugboro

Akara 6@2x

Ikpokoro ikpo okwu

Harmonic isi iyi: rectifier, inverter

Harmonic akụrụngwa: AC generator set, mgbapụta

Akara 2@2x

Ihe owuwu ọgbara ọhụrụ

Harmonic isi iyi: rectifier, inverter

Harmonic akụrụngwa: ịgbanwee ike ọkọnọ, ntụ oyi, mbuli elu, LED

Ubi Ngwa a na-ahụkarị

ỌrụTransformer ike Tebụl ajụjụ nhọrọ ikike ịkwụ ụgwọ etiti
Ụzọ ụgbọ oloko, ọwara mmiri, ụgbọ oloko na-agba ọsọ, ọdụ ụgbọ elu Nzikọrịta ozi, ihe owuwu azụmahịa, ọla, ụlọ akụ Ụlọ ọrụ ahụike Ime ụgbọ ala, imepụta ụgbọ mmiri Chemical, mmanụ ala Ụlọ ọrụ metallurgical
Mgbanwe ugboro nke harmonic current 15% 20% 25% 30% 35% 40%
200 kVA 50A 50A 100A 100A 100A 100A
250 kVA 50A 100A 100A 100A 150A 150A
315 kVA 100A 100A 150A 150A 150A 200A
400 kVA 100A 150A 150A 200A 200A 250A
500 kVA 100A 150A 200A 200A 250A 300A
630 kVA 150A 200A 250A 300A 350A 400A
800 kVA 200A 250A 300A 350A 450A 500A
1000 kVA 200A 300A 400A 450A 550A 600A
1250 kVA 300A 350A 450A 550A 650A 750A
1600 kVA 350A 500A 600A 700A 850A 950A
2000 kVA 450A 600A 750A 900A 1050A 1200A
2500 kVA 550A 750A 900A 1150A 1300A 1500A
* Rịba ama: A na-enweta ike AHF dị na tebụl dị n'elu na ihe nkwụnye ọkụ nke 80 pasent.N'ime ọrụ n'ezie, a na-enweta ikike AHF nke ọma site n'ịtụle uru nke ibu ibu na 80% ibu ihe na tebụl a.
* Tebụl a bụ naanị maka ntụnye aka nhọrọ

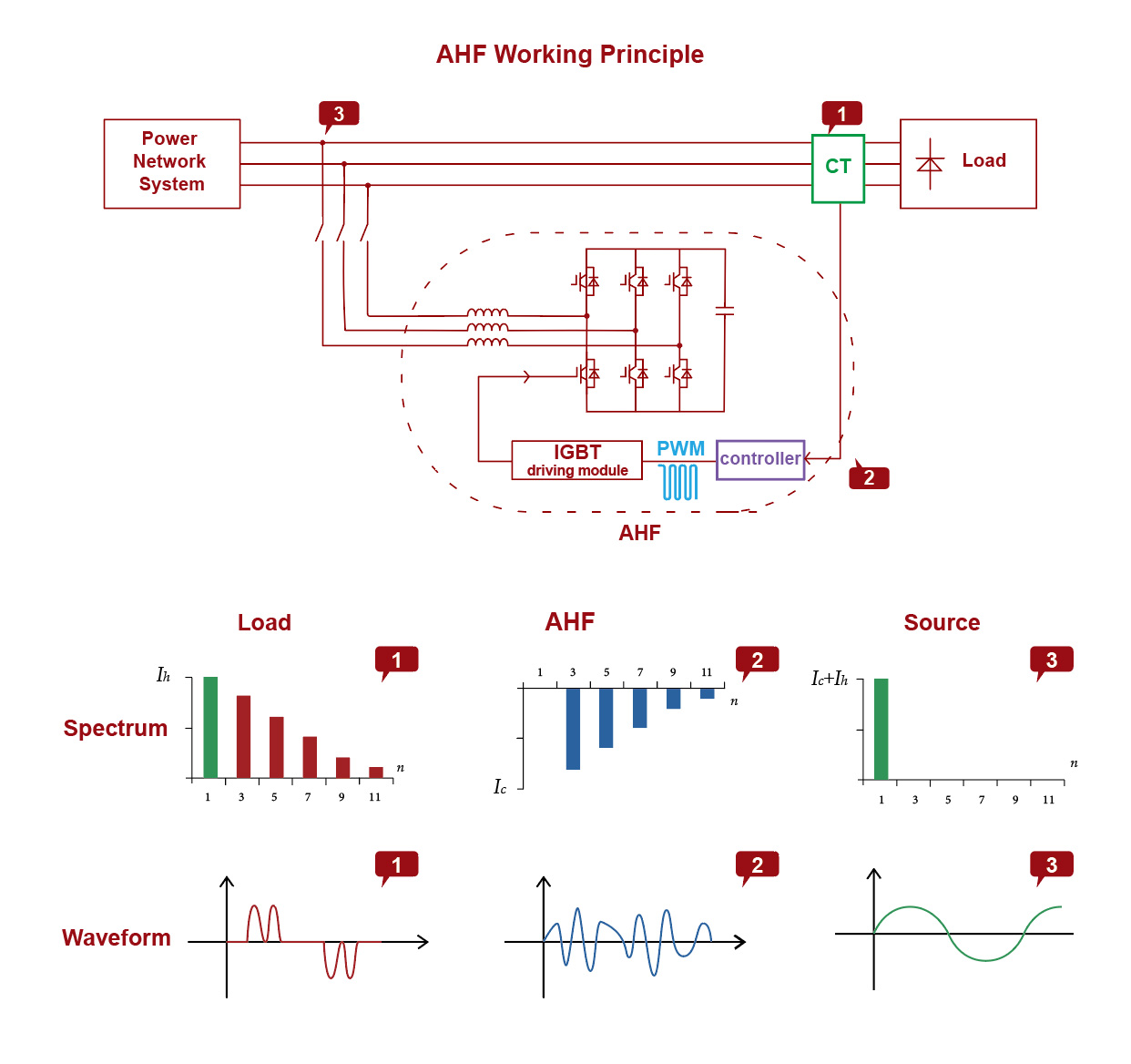

Ụkpụrụ ọrụ

Mpụga CT na-achọpụta ibu dị ugbu a, DSP ka CPU nwere mgbakọ njikwa mgbagha dị elu, nwere ike soro ntuziaka ugbu a ngwa ngwa, kewaa ibu dị ugbu a ka ọ bụrụ ike arụ ọrụ yana ike mmeghachi omume site na iji FFT nwere ọgụgụ isi, wee gbakọọ ọdịnaya kwekọrọ ngwa ngwa na nke ọma.Mgbe ahụ ọ na-eziga mgbama PWM na bọọdụ ọkwọ ụgbọ ala IGBT dị n'ime iji jikwaa IGBT gbanye na gbanyụọ na ugboro 20KHZ.N'ikpeazụ, ọ na-ewepụta ụgwọ ọrụ nke ọzọ na ntinye inverter, n'otu oge ahụ CT na-achọpụtakwa nzaghachi dị ugbu a na nzaghachi na-adịghị mma na-aga na DSP.Mgbe ahụ DSP na-aga n'ihu njikwa ezi uche na-esote iji nweta usoro ziri ezi ma kwụsie ike.

AHF2
ahf1

Nkọwa nka nka

Ụdị 220V usoro 400V usoro 500V usoro 690V usoro
Egotara nkwụghachi ụgwọ ugbu a 23A 15A,25A,50A
75A,100A,150A
100A 100A
voltaji ọnụ AC220V
(-20%~+15%)
AC400V
(-40%~+15%)
AC500V
(-20%~+15%)
AC690V
(-20%~+15%)
Ugboro ugboro 50/60Hz±5%
Netwọk Otu akụkụ 3 nkeji 3 waya/3 nkeji 4 waya
Oge nzaghachi <40ms
Harmonics nzacha 2nd ka 50th Harmonics, The ọnụ ọgụgụ nke ụgwọ nwere ike họrọ, na nso nke otu akwụ ụgwọ nwere ike gbanwee.
Ọnụ ego nkwụghachi ụgwọ > 92%
Ike nzacha ahịrị na-anọpụ iche / Ike nzacha nke ahịrị na-anọpụ iche nke 3 nkeji 4 bụ ugboro 3 nke nhazi oge
Igwe arụmọrụ > 97%
Ugboro ngbanwe 32kHz 16kHz 12.8kHz 12.8kHz
Ọrụ Na-emeso harmonics
Ọnụọgụgụ na otu Enweghị njedebe. Enwere ike ịkwado modul nlekota nke otu etiti na ihe ruru modul ike 8
Ụzọ nzikọrịta ozi interface nkwurịta okwu RS485 ọwa abụọ (nkwado GPRS/WIFI nzikọrịta ozi ikuku)
Alfitude na-enweghị derating <2000m
Okpomọkụ -20 ~ + 50 ℃
iru mmiri <90% RH, Nkezi opekempe kwa ọnwa bụ 25°C na-enweghị condensation n'elu
Ọkwa mmetọ N'okpuru ọkwa III
Ọrụ nchekwa Nchekwa oke ibu, nchekwa ngwaike n'elu-ugbu a, nchekwa oke voltaji, nchekwa ọdịda ike, nchekwa oke okpomọkụ, nchekwa anomaly ugboro ugboro, nchekwa sekit dị mkpụmkpụ, wdg.
Mkpọtụ <50dB <60dB <65dB
nkwụnye Akwadoro / mgbidi
N'ime ụzọ ahịrị Ntinye azụ(ụdị akwa), ntinye n'elu(ụdị nke etinyere mgbidi)
Ọkwa nchekwa IP20





Ịkpọ aha ngwaahịa

AHF品牌

Ọdịdị ngwaahịa

4W
4W nke 2
